Physical Buildout
Here you’ll find the information needed to build the primary physical structures in a Piper Van.
Sequence of steps:
- Build the shelves (see drawings below)
- Install floor
- Install partition
- Install mounting hardware
- Install front wall
- Install deck
- Install cabinets and other shelves
- Install remaining wall sections
Full Wall Assembly (primary shelf)
This first drawing shows assembly of the primary shelf, and references the subassemblies you’ll need to join. The following drawings show each of the subassemblies.
Full Wall Assembly Drawing
Deck
The deck is
Deck Drawings
Deck Cut List
MapBoards Pro Report
Deck
Board 1-4 - Pine 3 1/2in x 192in x 1 1/2in
Board 5 - Birch Ply 48in x 96in x 1/2in
| Board | Qty | Name(s) | Material | __Width__ | _Length__ | Thickness |
|---|---|---|---|---|---|---|
| 1 | 2 | Leg | Pine | 3 1/2 | 32 1/2 | 1 1/2 |
| 1 | 1 | Stile | Pine | 3 1/2 | 117 1/2 | 1 1/2 |
| 2 | 2 | Leg | Pine | 3 1/2 | 32 1/2 | 1 1/2 |
| 2 | 1 | Stile | Pine | 3 1/2 | 117 1/2 | 1 1/2 |
| 3 | 1 | Leg | Pine | 3 1/2 | 32 1/2 | 1 1/2 |
| 3 | 6 | Rail(s).Body7|Rai... | Pine | 3 1/2 | 22 | 1 1/2 |
| 3 | 2 | s-Support | Pine | 1 1/2 | 19 | 1 1/2 |
| 4 | 2 | H-support | Pine | 1 1/2 | 42 | 1 1/2 |
| 5 | 1 | Plywood-Top-96 | Birch Ply | 24 7/8 | 96 | 1/2 |
| 5 | 1 | Laddar_Shelf | Birch Ply | 22 | 45 | 1/2 |
| 5 | 1 | Plywood-Top-20.75 | Birch Ply | 21 1/2 | 24 7/8 | 1/2 |
| Material | Qty | __Width__ | _Length__ | Thickness |
|---|---|---|---|---|
| Pine (1 1/2 in) | 4 | 3 1/2 | 192 | 1 1/2 |
| Birch Ply (1/2 in) | 1 | 48 | 96 | 1/2 |
Selected: (Options Described)
- Arrange Type: Matching Widths Horizontally
- Unit Type: Inch
- Display Format: Fractional
- Display Precision: 1/16
- Component Spacing: 0.125 in
- Trim on Board Edge: 0.000 in
- Can Rotate Components: True
- Arrange from bottom up: False
- Ignore Thickness: False
- Use Appearance: True
- Automatic Grain Alignment: False
- Use Full Path Name: False
Hidden Cabinet
This cabinet sits behind the main cabinets, for long material storage.
Hidden Cabinet Drawings
Hidden Cabinet Cut List
MapBoards Pro Report
Hidden Cab_Main
Board 1 - Birch Ply 48in x 96in x 3/4in
Board 2 - Birch Ply 48in x 96in x 1/2in
| Board | Qty | Name(s) | Material | __Width__ | _Length__ | Thickness |
|---|---|---|---|---|---|---|
| 1 | 2 | R-side|L-side | Birch Ply | 23 3/4 | 50 1/2 | 3/4 |
| 2 | 1 | back | Birch Ply | 4 1/2 | 23 3/4 | 1/2 |
| 2 | 4 | Shelf.Body3|Shelf... | Birch Ply | 4 1/2 | 50 | 1/2 |
| Material | Qty | __Width__ | _Length__ | Thickness |
|---|---|---|---|---|
| Birch Ply (3/4 in) | 1 | 48 | 96 | 3/4 |
| Birch Ply (1/2 in) | 1 | 48 | 96 | 1/2 |
Selected: (Options Described)
- Arrange Type: Matching Widths Horizontally
- Unit Type: Inch
- Display Format: Fractional
- Display Precision: 1/16
- Component Spacing: 0.125 in
- Trim on Board Edge: 0.000 in
- Can Rotate Components: True
- Arrange from bottom up: False
- Ignore Thickness: False
- Use Appearance: True
- Automatic Grain Alignment: False
- Use Full Path Name: False
Left Cabinet
Left Cabinet Drawings
Left Cabinet Cut List
MapBoards Pro Report
Left Cab
Board 1 - Birch Ply 48in x 96in x 1/2in
Board 2-3 - Birch Ply 48in x 96in x 3/4in
| Board | Qty | Name(s) | Material | __Width__ | _Length__ | Thickness |
|---|---|---|---|---|---|---|
| 1 | 1 | back | Birch Ply | 42 1/4 | 46 | 1/2 |
| 1 | 1 | deck | Birch Ply | 16 3/4 | 47 | 1/2 |
| 1 | 3 | 1/2 Partitions.Bo... | Birch Ply | 16 1/4 | 14 1/2 | 1/2 |
| 2 | 2 | R-side|L-side | Birch Ply | 16 3/4 | 42 1/4 | 3/4 |
| 2 | 1 | Partition | Birch Ply | 16 1/4 | 42 1/4 | 3/4 |
| 2 | 2 | Shelf (1).Body8|S... | Birch Ply | 16 1/4 | 22 7/8 | 3/4 |
| 2 | 1 | Split_bay_shelf | Birch Ply | 16 1/4 | 7 1/8 | 3/4 |
| 3 | 3 | Shelf (1).Body10|... | Birch Ply | 16 1/4 | 22 7/8 | 3/4 |
| Material | Qty | __Width__ | _Length__ | Thickness |
|---|---|---|---|---|
| Birch Ply (1/2 in) | 1 | 48 | 96 | 1/2 |
| Birch Ply (3/4 in) | 2 | 48 | 96 | 3/4 |
Selected: (Options Described)
- Arrange Type: Matching Widths Horizontally
- Unit Type: Inch
- Display Format: Fractional
- Display Precision: 1/16
- Component Spacing: 0.125 in
- Trim on Board Edge: 0.000 in
- Can Rotate Components: True
- Arrange from bottom up: True
- Ignore Thickness: False
- Use Appearance: True
- Automatic Grain Alignment: False
- Use Full Path Name: False
Middle Cabinet
Middle Cabinet Drawings
Middle Cabinet Cut List
MapBoards Pro Report
Middle Cab
Board 1-2 - Birch Ply 48in x 96in x 3/4in
Board 3 - Birch Ply 48in x 96in x 1/2in
| Board | Qty | Name(s) | Material | __Width__ | _Length__ | Thickness |
|---|---|---|---|---|---|---|
| 1 | 2 | R-side|L-side | Birch Ply | 16 1/2 | 42 1/4 | 3/4 |
| 1 | 1 | Partition | Birch Ply | 16 | 42 1/4 | 3/4 |
| 1 | 2 | Shelf (1).Body2|S... | Birch Ply | 16 | 23 5/8 | 3/4 |
| 2 | 1 | Shelf (1).Body7 | Birch Ply | 16 | 23 5/8 | 3/4 |
| 2 | 4 | Shelf (1).Body3|S... | Birch Ply | 16 | 22 1/8 | 3/4 |
| 3 | 1 | back | Birch Ply | 42 1/4 | 46 | 1/2 |
| 3 | 1 | deck | Birch Ply | 16 1/2 | 47 | 1/2 |
| Material | Qty | __Width__ | _Length__ | Thickness |
|---|---|---|---|---|
| Birch Ply (3/4 in) | 2 | 48 | 96 | 3/4 |
| Birch Ply (1/2 in) | 1 | 48 | 96 | 1/2 |
Selected: (Options Described)
- Arrange Type: Matching Widths Horizontally
- Unit Type: Inch
- Display Format: Fractional
- Display Precision: 1/16
- Component Spacing: 0.125 in
- Trim on Board Edge: 0.000 in
- Can Rotate Components: True
- Arrange from bottom up: False
- Ignore Thickness: False
- Use Appearance: True
- Automatic Grain Alignment: False
- Use Full Path Name: False
Right Cabinet
Right Cabinet Drawings
Right Cabinet Cut List
MapBoards Pro Report
Right Cab
Board 1 - Birch Ply 48in x 96in x 3/4in
Board 2 - Birch Ply 48in x 96in x 1/2in
| Board | Qty | Name(s) | Material | __Width__ | _Length__ | Thickness |
|---|---|---|---|---|---|---|
| 1 | 2 | R-side|L-side | Birch Ply | 16 1/2 | 42 1/4 | 3/4 |
| 1 | 2 | Shelf.Body1|Shelf... | Birch Ply | 16 | 23 1/8 | 3/4 |
| 2 | 1 | back | Birch Ply | 23 1/8 | 42 1/4 | 1/2 |
| 2 | 1 | deck | Birch Ply | 16 1/2 | 24 1/8 | 1/2 |
| Material | Qty | __Width__ | _Length__ | Thickness |
|---|---|---|---|---|
| Birch Ply (3/4 in) | 1 | 48 | 96 | 3/4 |
| Birch Ply (1/2 in) | 1 | 48 | 96 | 1/2 |
Selected: (Options Described)
- Arrange Type: Matching Widths Horizontally
- Unit Type: Inch
- Display Format: Fractional
- Display Precision: 1/16
- Component Spacing: 0.125 in
- Trim on Board Edge: 0.000 in
- Can Rotate Components: True
- Arrange from bottom up: False
- Ignore Thickness: False
- Use Appearance: True
- Automatic Grain Alignment: False
- Use Full Path Name: False
Drawer
Drawer Drawings
Drawer Cut List
MapBoards Pro Report
DWR
Board 1 - Pine 5 1/2in x 192in x 3/4in
Board 2 - Pine 48in x 96in x 1/4in
| Board | Qty | Name(s) | Material | __Width__ | _Length__ | Thickness |
|---|---|---|---|---|---|---|
| 1 | 1 | Back | Pine | 5 | 22 1/8 | 3/4 |
| 1 | 2 | L-Side|R-side | Pine | 4 15/16 | 15 1/4 | 3/4 |
| 1 | 1 | Front | Pine | 3 | 22 1/8 | 3/4 |
| 2 | 1 | Bottom | Pine | 15 1/8 | 21 1/4 | 1/4 |
| Material | Qty | __Width__ | _Length__ | Thickness |
|---|---|---|---|---|
| Pine (3/4 in) | 1 | 5 1/2 | 192 | 3/4 |
| Pine (1/4 in) | 1 | 48 | 96 | 1/4 |
Selected: (Options Described)
- Arrange Type: Matching Widths Horizontally
- Unit Type: Inch
- Display Format: Fractional
- Display Precision: 1/16
- Component Spacing: 0.125 in
- Trim on Board Edge: 0.000 in
- Can Rotate Components: True
- Arrange from bottom up: False
- Ignore Thickness: False
- Use Appearance: True
- Automatic Grain Alignment: False
- Use Full Path Name: False
Tall Cabinet (shelf stack)
This is the smaller shelf on the right on of the van (from the back).
Tall Cabinet Drawings
Tall Cabinet Cut List
MapBoards Pro Report
Shelf Stack
Board 1 - Birch Ply 48in x 96in x 3/4in
Board 2 - Birch Ply 48in x 96in x 1/2in
| Board | Qty | Name(s) | Material | __Width__ | _Length__ | Thickness |
|---|---|---|---|---|---|---|
| 1 | 2 | Slant Shelf.Body3... | Birch Ply | 11 11/16 | 19 1/2 | 3/4 |
| 1 | 1 | Top | Birch Ply | 11 7/16 | 19 1/2 | 3/4 |
| 1 | 2 | L-Side|R-Side | Birch Ply | 11 1/4 | 78 3/4 | 3/4 |
| 1 | 5 | Shelf(s).Body2|Sh... | Birch Ply | 10 3/4 | 19 1/2 | 3/4 |
| 2 | 1 | Back | Birch Ply | 19 1/2 | 76 11/16 | 1/2 |
| 2 | 1 | deck | Birch Ply | 11 1/4 | 20 1/2 | 1/2 |
| Material | Qty | __Width__ | _Length__ | Thickness |
|---|---|---|---|---|
| Birch Ply (3/4 in) | 1 | 48 | 96 | 3/4 |
| Birch Ply (1/2 in) | 1 | 48 | 96 | 1/2 |
Selected: (Options Described)
- Arrange Type: Matching Widths Horizontally
- Unit Type: Inch
- Display Format: Fractional
- Display Precision: 1/16
- Component Spacing: 0.125 in
- Trim on Board Edge: 0.000 in
- Can Rotate Components: True
- Arrange from bottom up: True
- Ignore Thickness: False
- Use Appearance: True
- Automatic Grain Alignment: False
- Use Full Path Name: False
Cab Shelf

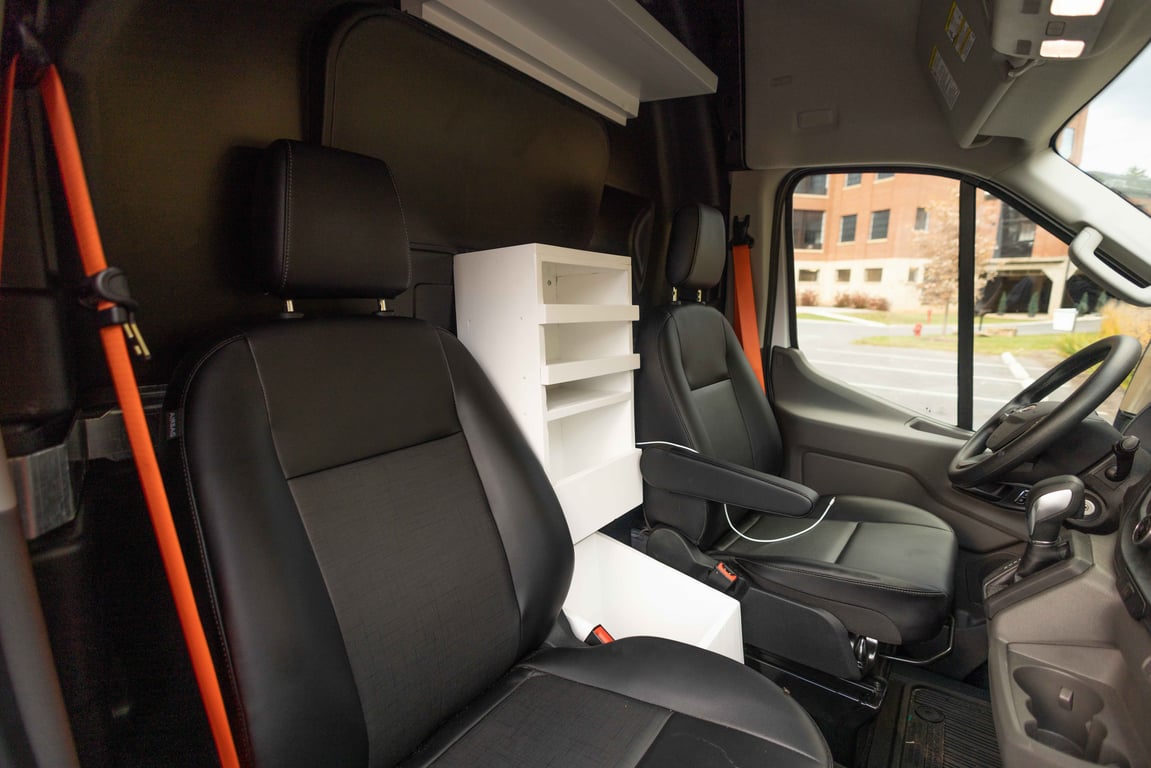

This is the shelf in the cab of the van, mounted to the front of the partition.
Cab Shelf Drawings
Cab Shelf Cut List
MapBoards Pro Report
Bottle Box
Board 1 - Birch Ply 48in x 96in x 1/2in
| Board | Qty | Name(s) | Material | __Width__ | _Length__ | Thickness |
|---|---|---|---|---|---|---|
| 1 | 2 | R-Side|L-Side | Birch Ply | 10 | 16 | 1/2 |
| 1 | 1 | Back | Birch Ply | 9 1/2 | 15 1/8 | 1/2 |
| 1 | 1 | Deck | Birch Ply | 9 1/2 | 10 1/4 | 1/2 |
| 1 | 1 | Top | Birch Ply | 9 1/2 | 10 | 1/2 |
| 1 | 1 | Angled_Shelf | Birch Ply | 9 1/2 | 9 9/16 | 1/2 |
| 1 | 1 | Flat_Shelf | Birch Ply | 9 1/2 | 9 1/2 | 1/2 |
| Material | Qty | __Width__ | _Length__ | Thickness |
|---|---|---|---|---|
| Birch Ply (1/2 in) | 1 | 48 | 96 | 1/2 |
Selected: (Options Described)
- Arrange Type: Matching Widths Horizontally
- Unit Type: Inch
- Display Format: Fractional
- Display Precision: 1/16
- Component Spacing: 0.125 in
- Trim on Board Edge: 0.000 in
- Can Rotate Components: True
- Arrange from bottom up: False
- Ignore Thickness: False
- Use Appearance: True
- Automatic Grain Alignment: False
- Use Full Path Name: False
3D Printed Fixtures
There are many ways to print the fixtures you’ll need to keep your PVC fittings organized. Below are the processes that have worked well for us.
Process
We use Fused Deposition Modeling (FDM) printers - these are generally what you’ll find in schools, the library, or someone’s garage.
Material
We’ve had good success with PLA filament.
Print Files
Download these 3D print files and print them for installation in the 2” and 1.5” fittings drawers. it usually takes a few days of printing on one printer (much less hands on time) to print all the fixtures for one van.
Downloads
Table view
Setup/Installation

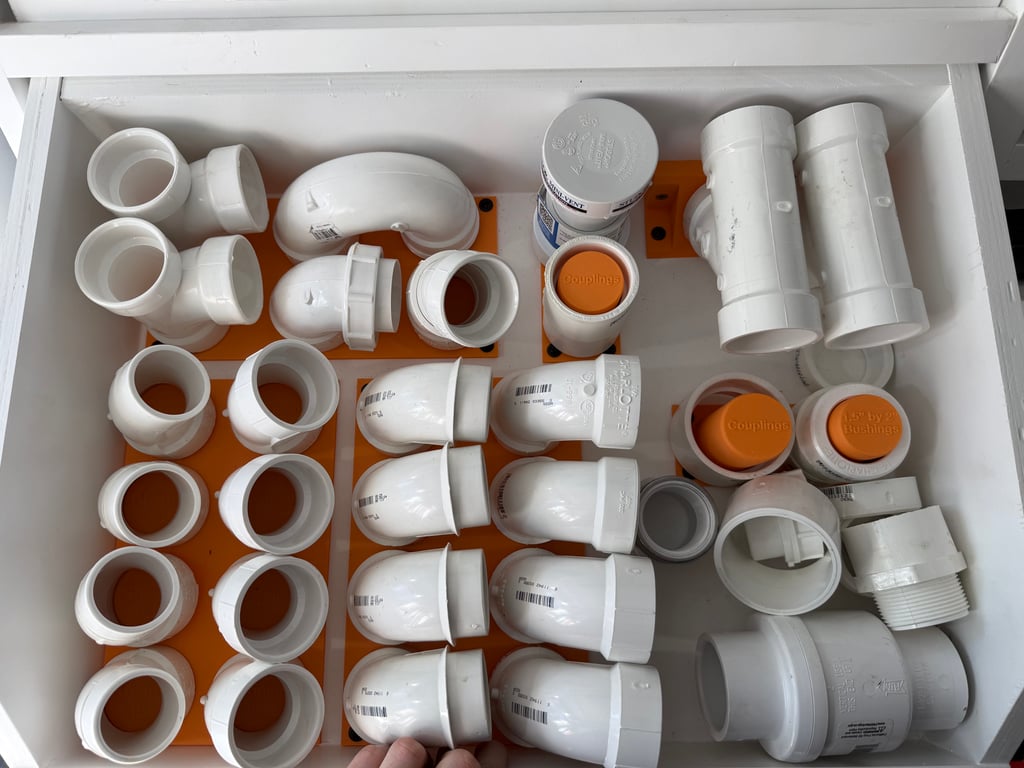

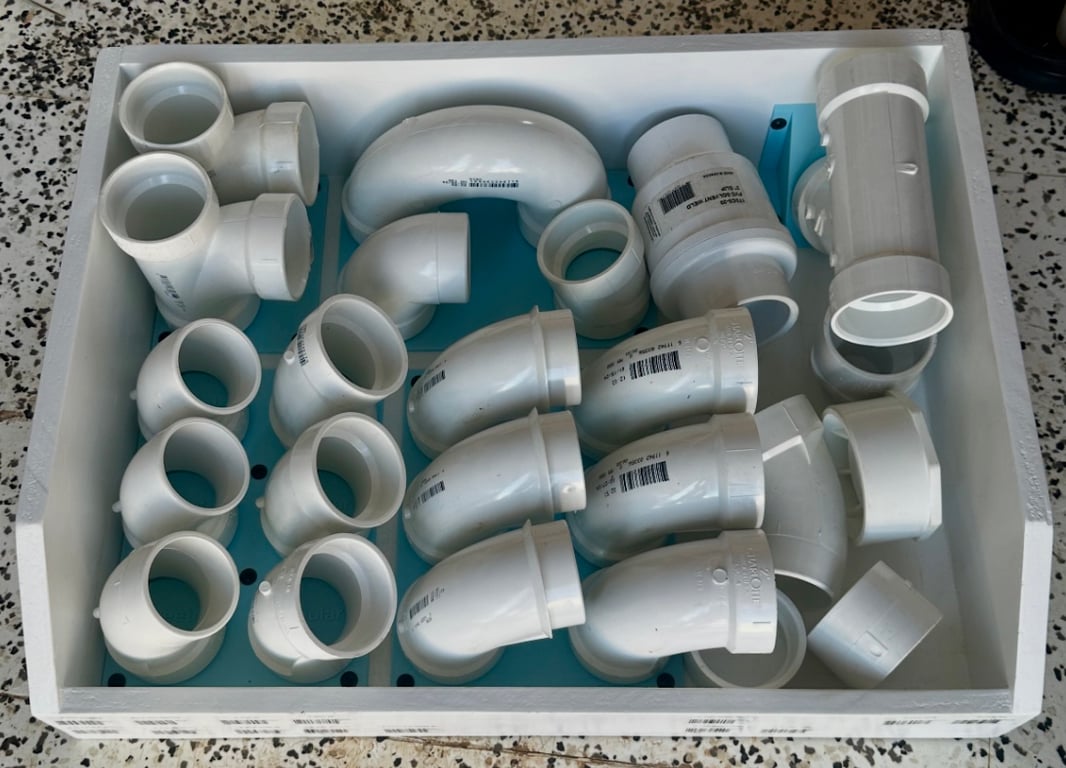

Install the fixtures in the wooden drawers using the layout shown in these images.
Magnetic Retention Nets

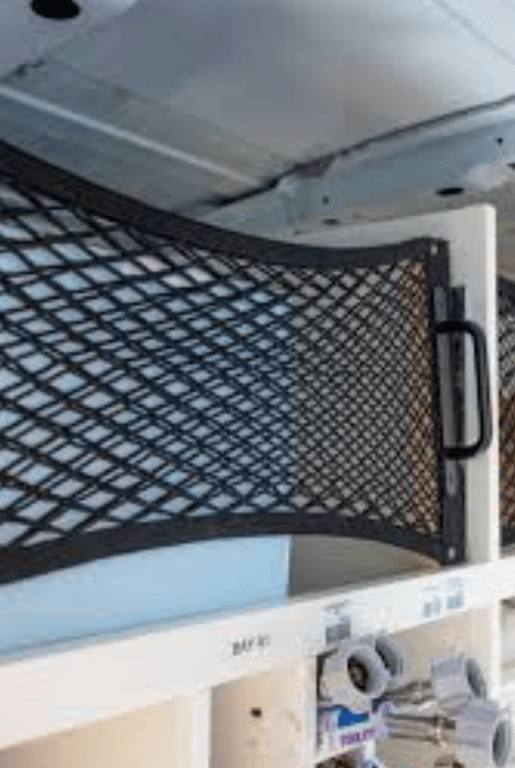

These nets retain items on the top of the main shelf.
Flooring
Section coming soon!
